New! Reedy HV Digital Low-Profile Servos

Reedy's HV Digital Low-Profile Competition Servos are race-proven and engineered for use in both touring cars and the latest generation 2WD and 4WD buggies. Precision metal gears, powerful motors, and an advanced microprocessor improve vehicle control while an integrated aluminum mid case lowers operating temperatures for fade-free operation.

High voltage compatibility means that increased ESC BEC output voltage can be used without fear of damaging sensitive internal components.

A choice of hi-torque and hi-speed models make Reedy's HV Digital Low-Profile Competition Servos the logical choice for a variety of racing classes and skill levels.

Features

  • Compact low-profile design
  • Water and dust resistant
  • Aluminum mid-case
  • Powerful coreless motor
  • Ultra-precise metal gears
  • Dual ball bearings
  • High voltage compatible

Specifications:

RS0806 LP RT1408 LP
Part # 27108 27109
Input (V) 6.0V - 7.4V 6.0V - 7.4V
Speed (sec/60deg.), 6.0V 0.07 0.10
Speed (sec/60deg.), 7.4V 0.06 0.08
Torque (kg-cm/oz-in), 6.0V 7.1/98.7 11.8/163.8
Torque (kg-cm/oz-in), 7.4V 8.3/115.2 14.3/198.5
Dimensions (mm) 39.5 x 20.0 x 30.5 39.5 x 20.0 x 30.5
Weight (g) 53.0 53.0
Spline 25 25

UPC Part # Description Buy Now

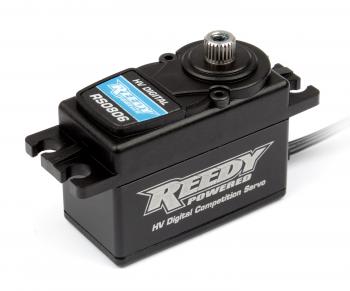

784695 271081 #27108 Reedy RS0806 LP Digital HV Hi-Speed Comp. Servo

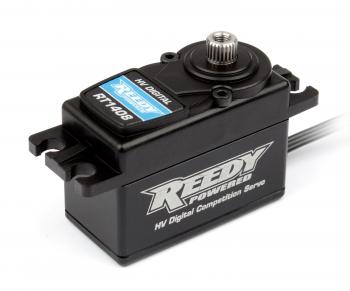

784695 271098 #27109 Reedy RT1408 LP Digital HV Hi-Torque Comp. Servo
784695 271241 #27124 Reedy RS0806 LP Case Set Available June
784695 271258 #27125 Reedy RS0806 LP Gear Set Available June
784695 271265 #27126 Reedy RT1408 LP Case Set Available June
784695 271272 #27127 Reedy RT1408 LP Gear Set Available June
