NEW! Reedy Blackbox 410R Competition ESC

The long-anticipated and highly developed Reedy Blackbox 410R ESC is now available to racers worldwide. Extensive track testing by Reedy’s engineers and racing team has resulted in a high performance, high quality, and reliable ESC suitable for all levels of competition. A focus on excellent throttle and brake feel, precision adjustability, and robust hardware make the Blackbox 410R suitable for a wide range of racing applications.

Features

  • CNC-machined black aluminum case with integrated heat sink
  • Fully adjustable brake, throttle, power, and safety functions
  • Eight pre-programmed, customizable* profiles
  • Blinky mode with ROAR-approved software
  • Precision throttle and brake control
  • Speed sensitive drag brake function
  • Ultra-low resistance FET board
  • 12-gauge power wires
  • Heavy-duty external capacitor board
  • Built-in voltage booster for 1S applications
  • RPM data logging*
  • Firmware updateable*

*Requires Blackbox PROgrammer #27020

Specifications, Blackbox 410R


Voltage input 3.7 - 7.4 / 1-2 LiPo
On resistance (ohms) 0.00035 x2
Continuous current (A) 150
Dimensions (mm) 40.8 x 33.0 x 19.0
Weight w/o wires (g) 49
Motor limit (2-pole/4-pole) 3.5 / 4800kV
SBEC 5.5 - 7.0V/5A
Cooling fan optional

With the Blackbox PROgrammer, the full potential of the ESC can be exploited. In addition to working as a programming device to fine-tune the eight pre-installed profiles, the PROgrammer operates as a data logger, battery monitor, and USB firmware update device.

Visit the site to get all programming details!

Available: October 2014

#27000

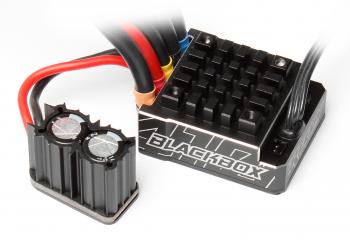

Blackbox 410R 1S-2S Competition ESC
UPC: 784695 270008

#27001

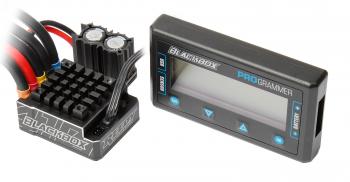

Blackbox 410R 1S-2S Competition ESC w/PROgrammer
UPC: 784695 270015

#27020

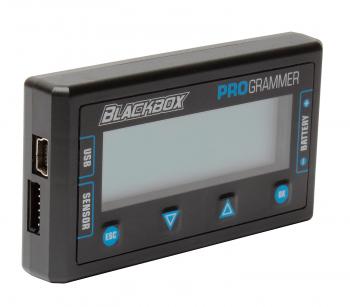

Blackbox ESC PROgrammer
UPC: 784695 270206

#27021

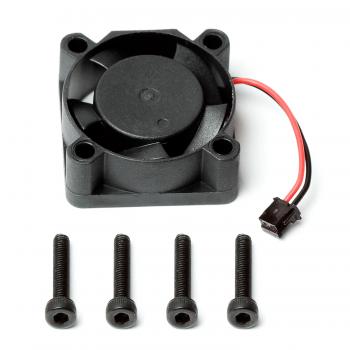

Blackbox 410R Fan w/screws
UPC: 784695 270213

#27022

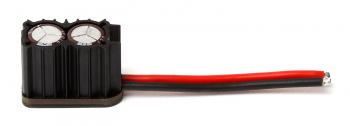

Blackbox 410R Heavy-Duty Capacitor Unit
UPC: 784695 270220

#27023
Blackbox 410R XL Capacitor Unit
UPC: 784695 270237

#27024

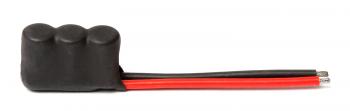

Blackbox 410R Pro Capacitor Unit
UPC: 784695 270244

#27025
Blackbox ESC PROgrammer Wire Extension
UPC: 784695 270251
