New! Reedy Blackbox 600Z-G2 Zero-Timing Competition ESC

Monday, Feb 15, 2021 at 12:00am UTC

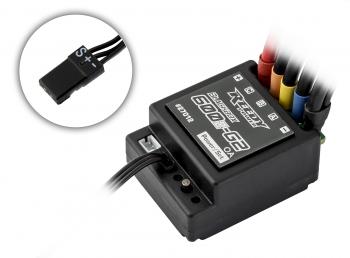

(Pictured: #27012 New! Reedy Blackbox 600Z-G2 Zero-Timing Competition ESC.)

Reedy's Blackbox 600Z-G2 Zero-Timing Competition ESC is an excellent option for entry-level racers thanks to its economical price, versatility, race-proven performance, and improved durability. Excellent throttle and brake feel, a wide range of adjustability, and upgraded hardware make the Blackbox 600Z-G2 suitable for a variety of racing applications, including entry level and cost-controlled "spec" race programs that mandate a specific ESC.

When combined with Sonic 540-FT motors, the pairing also offers the perfect solution for clubs and tracks that are striving to improve entry-level participation or introduce cost-controlled classes for racers of all skill levels.

Features

  • Lightweight plastic case with compact footprint
  • Low-profile heat sink
  • Fully adjustable brake and throttle functions
  • On-board, single-button programming
  • Optional Programmer2 programming
  • Zero-timing R.O.A.R.-approved software (pending)
  • Low-resistance circuitry
  • Precision throttle and brake control
  • Solder tabs for easy wire placement
  • Silicone power wires
  • Compact external capacitor
  • Firmware updateable
  • Competition proven

Adjustable Settings:

Operation Mode -- Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation.

Drag Brake -- Adjust automatic braking strength when the throttle trigger is returned to neutral.

Power Profile -- Increase or decreases punch.

Drive Frequency -- Adjust to create a smoother or more aggressive throttle feel.

Brake Frequency -- Adjust to create a smoother or more aggressive brake feel.

Restore Default -- Restore the factory default settings.

Specifications:

Voltage Input 2S LiPo
On Resistance (ohms) 0.0018
Continuous Current (A) 60
Dimensions (mm) 40.2 x 31.0 x 18.8
Weight w/o Wires (g) 37
Motor Limit 13.5T

#27012
Blackbox 600Z-G2 Zero-Timing Competition ESC
UPC: 784695270121
Available now

#27037
Blackbox 600Z-G2 ESC / Sonic 540-FT 13.5 Combo
UPC: 784695270374
Available February 2021

#27038
Blackbox 600Z-G2 ESC / Sonic 540-FT 17.5 Combo
UPC: 784695270381
Available February 2021

#27039
Blackbox 600Z-G2 ESC / Sonic 540-FT 21.5 Combo
UPC: 784695270398
Available February 2021
